Current Sensor Module ACS712 – 20A Accurate sensor to measure AC/DC current up to 20A. The sensor can even measure high AC mains current and is still isolated from the measuring part

ACS712. Manufacturer: Allegro MicroSystems. File Size: 945.12 KB. Description: Fully integrated / hall effect-based linear current sensor.

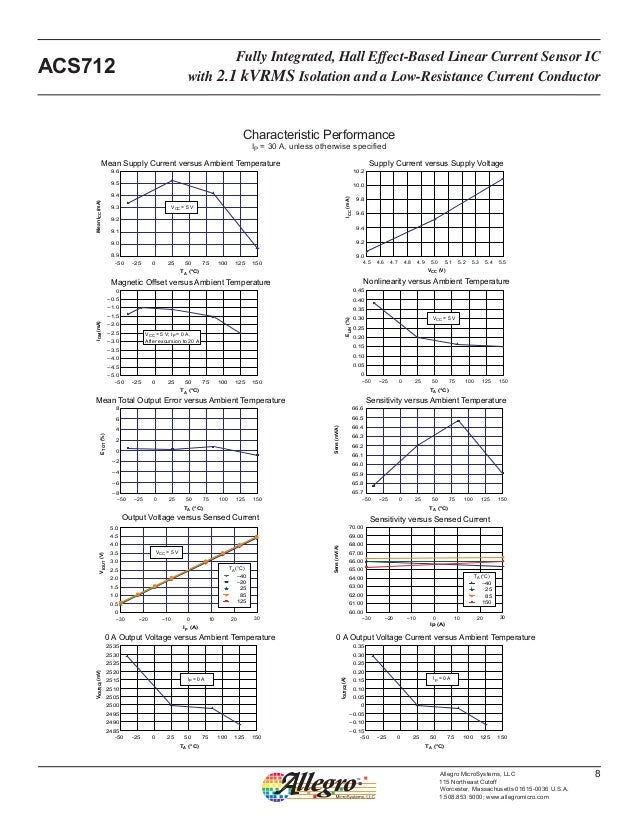

ACS712 Datasheet (PDF) – Allegro MicroSystems: Click to view in HTML datasheet. Similar Part No. – ACS712: Manufacturer: Part # Datasheet: Description: Allegro MicroSystems: ACS712:

ACS712TELC-20A Datasheet, PDF
ACS712 20A Range Current Sensor Module for Arduino
ACS712ELCTR-20A-T 数据表
ACS712 Current Sensor Module User’s Manual v1.0

ACS712-20A Datasheet, PDF : Search Partnumber : Match&Start with „ACS712“-Total : 60 ( 1/3 Page) Manufacturer: Part No. Datasheet: Description: Allegro MicroSystems: ACS712: 996Kb /

The Allegro® ACS712 provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. The device package control, load

View ACS712 by SparkFun Electronics datasheet for technical specifications, dimensions and more at DigiKey.

The ACS712 provides accurate and isolated current sensing for industrial and commercial applications, with 2.4kVRMS isolation, low noise, and a wide operating

ACS712ELCTR-20A-T Datasheet, PDF

ACS712 7 8 +5 V VIOUT V OUT 6 FILTER VCC C BYP 0.1 µF C F 1 nF Application 1. The ACS712 outputs an analog signal, V OUT . that varies linearly with the uni- or bi-directional AC

ACS712ELCTR-20A-T Tape and reel, 3000 pieces/reel –40 to 85 ±20 100 ACS712ELCTR-30A-T Tape and reel, 3000 pieces/reel –40 to 85 ±30 66 *Contact Allegro for additional packing

The ACS712 is provided in a small, surface mount SOIC8 package. The leadframe is plated with 100% matte tin, which is compatible with standard lead (Pb) free printed circuit board assembly

20A Module 5Vdc 30A Module 5Vdc Nominal Nominal 5Vdc Nominal Measurement Range -5 to +5 Amps -20 to +20 Amps -30 to +30 Amps Voltage at 0A VCC/2 (nominally 2.5Vdc) VCC/2

ACS712ELCTR-20A-T Tape and reel, 3000 pieces/reel –40 to 85 ±20 100 ACS712ELCTR-30A-T Tape and reel, 3000 pieces/reel –40 to 85 ±30 66 *Contact Allegro for additional packing

ACS712 PDF Datasheet – Linear Current Sensor, ACS712 pinout, schematic, ACS712 manual, data, circuit, equivalent. DatasheetCafe. Semiconductor Informations.

The ACS712 is provided in a small, surface mount SOIC8 package. The leadframe is plated with 100% matte tin, which is compatible with standard lead (Pb) free printed circuit board assembly

ACS712 Current Sensor: Pinout, Datasheet and Circuit

ACS712ELCTR-20A-T Allegro MicroSystems Board Mount Current Sensors For New Designs Use ACS724/5 datasheet, inventory, & pricing. Skip to Main Content (800) 346

ACS712ELCTR-20A-T Tape and reel, 3000 pieces/reel –40 to 85 ±20 100 ACS712ELCTR-30A-T Tape and reel, 3000 pieces/reel –40 to 85 ±30 66 *Contact Allegro for additional packing

Here we are going to learn one cool and very important current sensor device which we call ACS712. This small chip that look just like a normal 8-pin IC, is actually able to

Part #: ACS712ELCTR-20A-T. Download. File Size: 996Kbytes. Page: 12 Pages. Description: Fully Integrated, Hall Effect-Based Linear Current Sensor with 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor.

ACS712 Datasheet (945.12 KB) Preview of ACS712 PDF Datasheet Details. Part number: ACS712. Manufacturer: Allegro MicroSystems. File Size: 945.12 KB. Description: Fully

本资料有acs712、acs712 pdf、acs712中文资料、acs712引脚图、acs712管脚图、acs712简介、acs712内部结构图和acs712引脚功能。首页; 技术. 可编程逻辑 mems/传感技术嵌入式技术

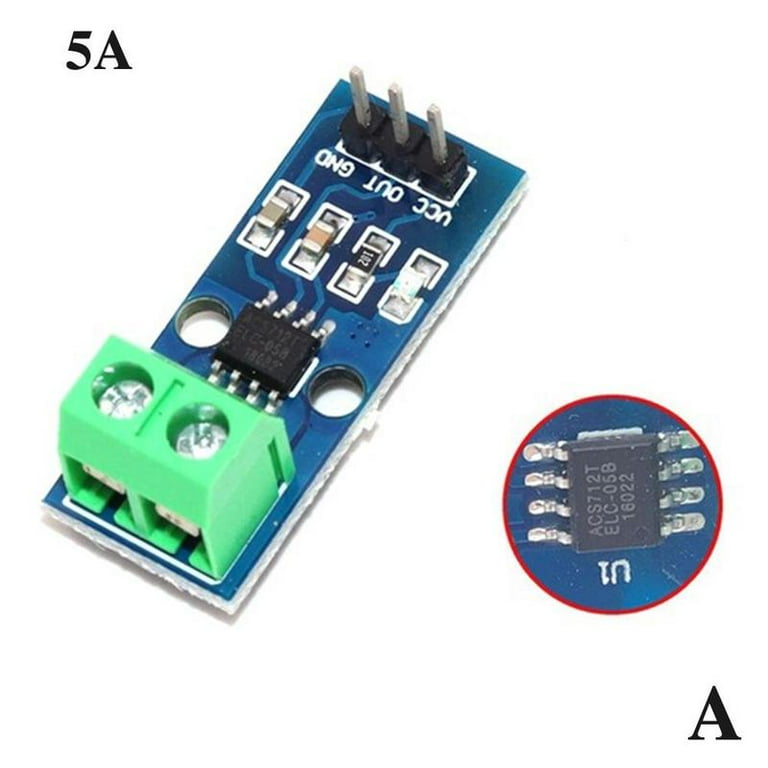

ACS712 Current Sensor Module – 20A is based on ACS712 sensor, which can accurately detect AC or DC current. The maximum AC or DC that can be detected can reach 20A, and the

Current Sensor Module ACS712 – 20A Accurate sensor to measure AC/DC current up to 20A. The sensor can even measure high AC mains current and is still isolated from the measuring part

ACS712 Current Sensor Module (20A) User’s Manual v1.0 – Free download as PDF File (.pdf), Text File (.txt) or read online for free. This document is a user manual for an ACS712 current

Applied current flowing through this copper conduction path generates a magnetic field which the Hall IC converts into a proportional voltage. Device accuracy is optimized through the close

ACS712 7 8 +5 V VIOUT V OUT 6 FILTER VCC C BYP 0.1 µF C F 1 nF Application 1. The ACS712 outputs an analog signal, V OUT . that varies linearly with the uni- or bi-directional AC

ACS712 2.1 kVRMS Voltage Isolation and a Low-Resistance Current Conductor ACS712ELCTR-20A-T Tape and reel, 3000 pieces/reel –40 to 85 ±20 100 ACS712ELCTR-30A

The AllegroTM ACS712 provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. The device package allows for easy
